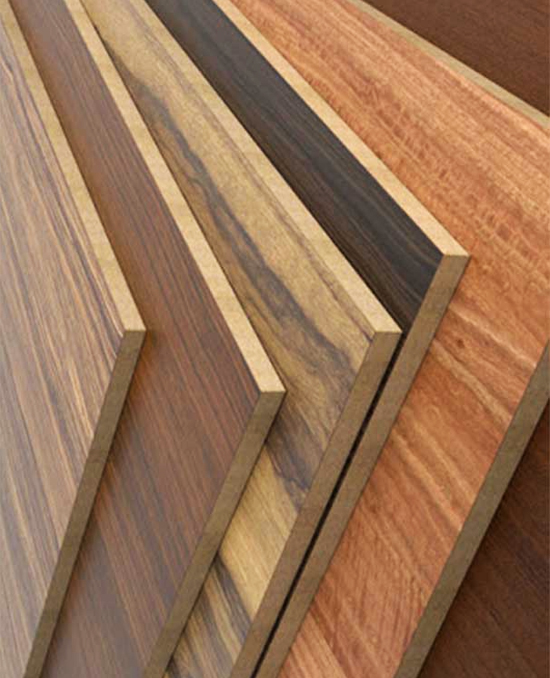

Solid Ply block board is manufactured with selected and seasoned planks of Marinti and Pinewood. The planks are treated with preservatives of special quality to resist borar, termite and fungi attack and later kiln dried at a technically laid temperature schedule. Our drying technology and temperature control parameters are tough to maintain elsewhere and rare in the industry but it superbly helps in getting balanced and straight planks. With a high MOE and MOR factor, Solid Ply boards are suitable for Indian houses. It has high mechanical strength, are dimensionally stable and warp free.
| Technical Specifications IS:1659 | ||
| Test | ISI Requirement | Results |
| Moisture content | 5% - 15% | 7.7% |
| Glue shear strength in dry condition | a. Individual Min. 1100 Newton, b. Average 1350 Newton. |
a. 1380 Newton b. 1680 Newton |
| Glue shear strength | a. Individual Min. 800 Newton, b. Average 1000 Newton. |
a. 1180 Newton b. 1340 Newton |
| Glue Shear Strength in mycological test | a. Individual Min. 800 Newton, b. Average 1000 Newton. |
a. 1210 Newton b. 1360 Newton |
| Tensile Strength: a. Parallel to grain direction b. Right angle to grain direction c. Sum of both directions |
a. Min. 325 Kgf./cm2 b. Min. 225 Kgf./cm2 c. Min. 600 Kgf./cm2 |
a. 630 Kgf./cm2 b. 395 Kgf./cm2 c. 990 Kgf./cm2 |
| Technical Specifications IS:710 | ||
| Test | ISI Requirement | Results |
| Moisture content | 5% - 15% | 12% |
| Glue shear strength in dry condition | a. Individual Min. 1100 Newton, b. Average 1350 Newton. |
a. 1550 Newton b. 1700 Newton |
| Glue shear strength | a. Individual Min. 800 Newton, b. Average 1000 Newton. |
a. 1000 Newton b. 1225 Newton |
| Glue Shear Strength in mycological test | a. Individual Min. 800 Newton, b. Average 1000 Newton. |
a. 960 Newton b. 1200 Newton |
| Tensile Strength: a. Parallel to grain direction b. Right angle to grain direction c. Sum of both directions |
a. Min. 420 Kgf./cm2 b. Min. 250 Kgf./cm2 c. Min. 845 Kgf./cm2 |
a. 540 Kgf./cm2 b. 370 Kgf./cm2 c. 910 Kgf./cm2 |
| Phenol-Formaldehyde Glue | Weather and boil proof Glue | |
| Veneer Quality | Top Quality | |
| Manufacturing defects | Strictly controlled | Zero tolerance |
